VENTILATSIOONISEADE MODEL 350 R WATER

Tootekood
CYY998

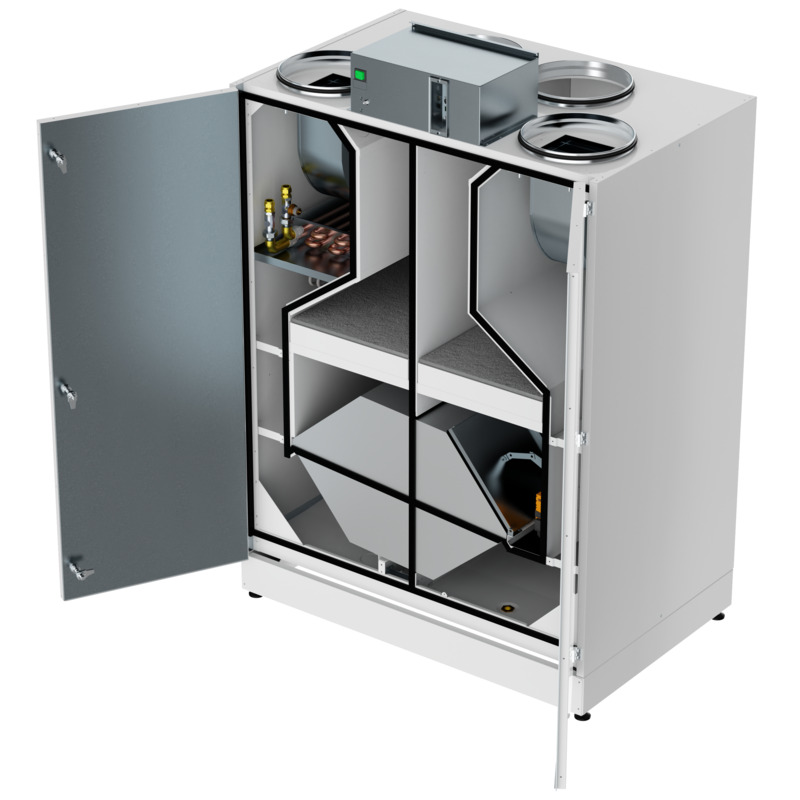

AirFi-Model350(R)Water. Energy class A+. LTO counterflow, block melting, condensation protection Airfi AFPS. Post-heating water. Control: Airfi controllers/setting graphics/boost graphics/Airfi app/VAK/ModBus RTU/TCP. Max. supply 345 dm³/s, 100 Pa - Max. exhaust 398 dm³/s, 100 Pa.

Airfi ventilation units enable fresh and healthy indoor air. Airfi ventilation units are designed for the harsh conditions of the North. The Airfi range includes models for single-family homes, row houses, apartment buildings, public spaces, and office spaces. The moisture removal from the bottom of the Airfi units has been enhanced, resulting in more efficient operation during cold periods. Standard features include cool heat recovery and heat recovery, which can be partially bypassed if needed.

The unit is ready for installation into all common automation systems via an external connection box. Comprehensive optional accessories available as factory-fitted.

This product description is an automated translation of the original Finnish description.

Toote andmed

Tehnilised näitajad

Soojusvaheti tüüpVastuvool
Soojuse tagastusRistine-vastuvoolu seade
Korpuse materjalTeras
Soojusvaheti materjalAlumiinium
Seinale paigaldatavjah
Sobib lakke paigaldamiseksei
Põrandale paigaldatavjah
Vasak/parem orientatsioon pööratavei
Maksimaalne õhumaht 100 Pa juures1325 m³/h
Mootori tüüpElektriliselt kommuteeritud (EC)
Pinge230 V
Sagedus50 Hz
Faaside arv1
Seadme kaitse10 A
Kuumuskaitsegajah

Tootekoodid

SAPCYY998
PLC10350012
EAN/GTIN6430072699972
Tootja tootekood10350012
Tarnija tootekood10350012

Põhinäitajad

Mõõdud800 x 1200 x 1650 mm
Maht1584 l
Kaal175 kg
Ühiktk
Pakendi suurused1
Kogus pakendis
UNSPSC40101601
KaubamärkAIRFI

Seotud dokumendid (6)
