ANDMESIDEKAPP SEINALE 19" 12U 607x600x450mm HALL

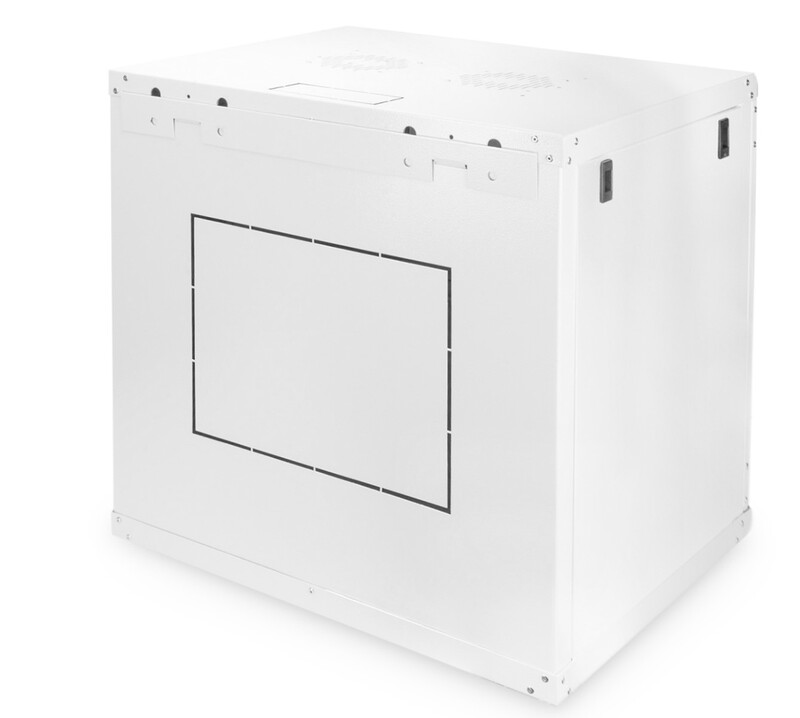

Dynamic series wall-mounted network cabinets are designed for easy and cost-effective network expansion. Each cabinet’s top, bottom, and rear panel is equipped with pre-cut cable entry openings. The top structure also features a pre-cut area for mounting the fan module. Inside, two pairs of zinc-coated 483 mm (19-inch) rack rails are installed, marked with height units readable from both directions. Their depth is adjustable. Each cabinet is manufactured from 1.5 mm thick steel sheet, powder-coated in standard colors: gray (RAL 7035) or jet black (RAL 9005). Removable side panels and a lockable, removable front door enhance aesthetics. Door hinges are reversible. Wall mounting is performed in two simple steps: the included mounting plate is bolted to the wall and then connected to the enclosure.

Technical specifications:

• Safety class: IP20
• Lockable security door with steel frame
• 483 mm (19") zinc-coated rack rails installed on front and rear of the rack
• Depth of 483 mm (19") rack rails is adjustable and marked with height units
• 0.8 - 1.2 mm thick steel sheet with high load capacity, powder-coated
• Cable entry points on rear, top, and base (pre-punched cutouts)
• Top panel prepared for fan units (pre-punched intakes)
• Ventilation openings for active and passive air exchange and exhaust
• Door opening angle: 235°
• 4 grounding points (base, side panel, and front door) with protective caps
• Device mounting depth min.-max.: 335 - 380 mm
• Cabinet type: Wall-mount cabinet
• Color: Light gray, RAL 7035
• Depth: 450 mm

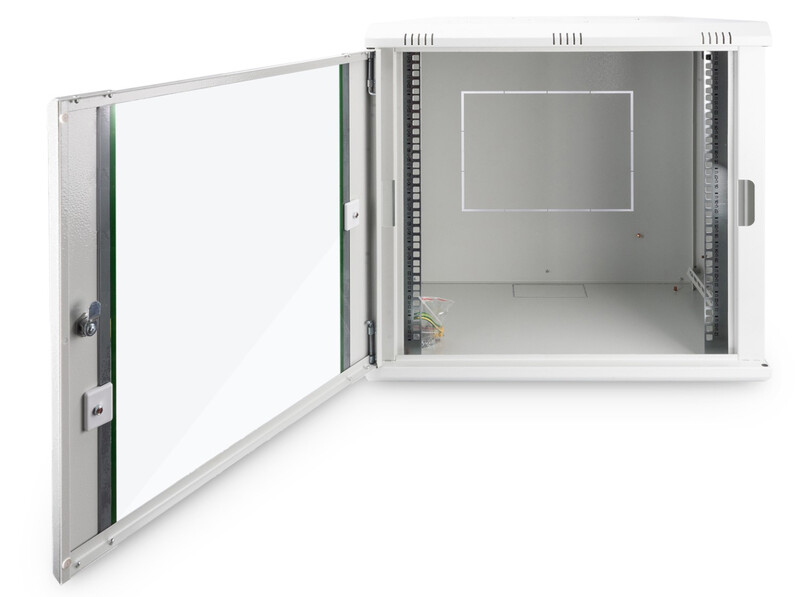

• Front door: Glass door, single opening
• Load capacity: 60 kg
• Side panels: Both sides
• Height: 12U
• Width: 600 mm
• IP protection class: IP20
• Assembled: Yes

This product description is an automated translation of the original Finnish description.
