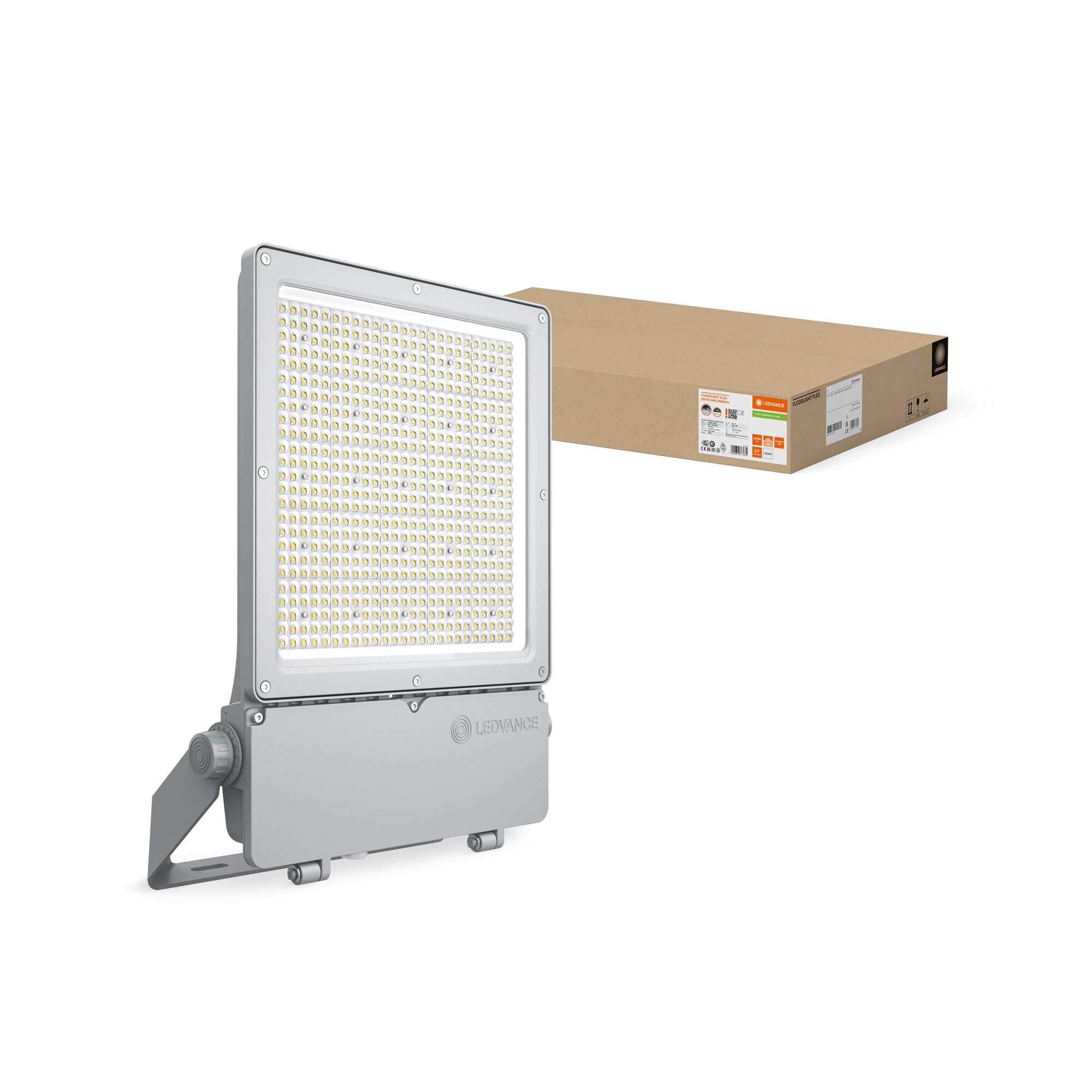

PROŽEKTOR FLEX 250W/840 A55X120 ASYM
Tootekood
DHY470

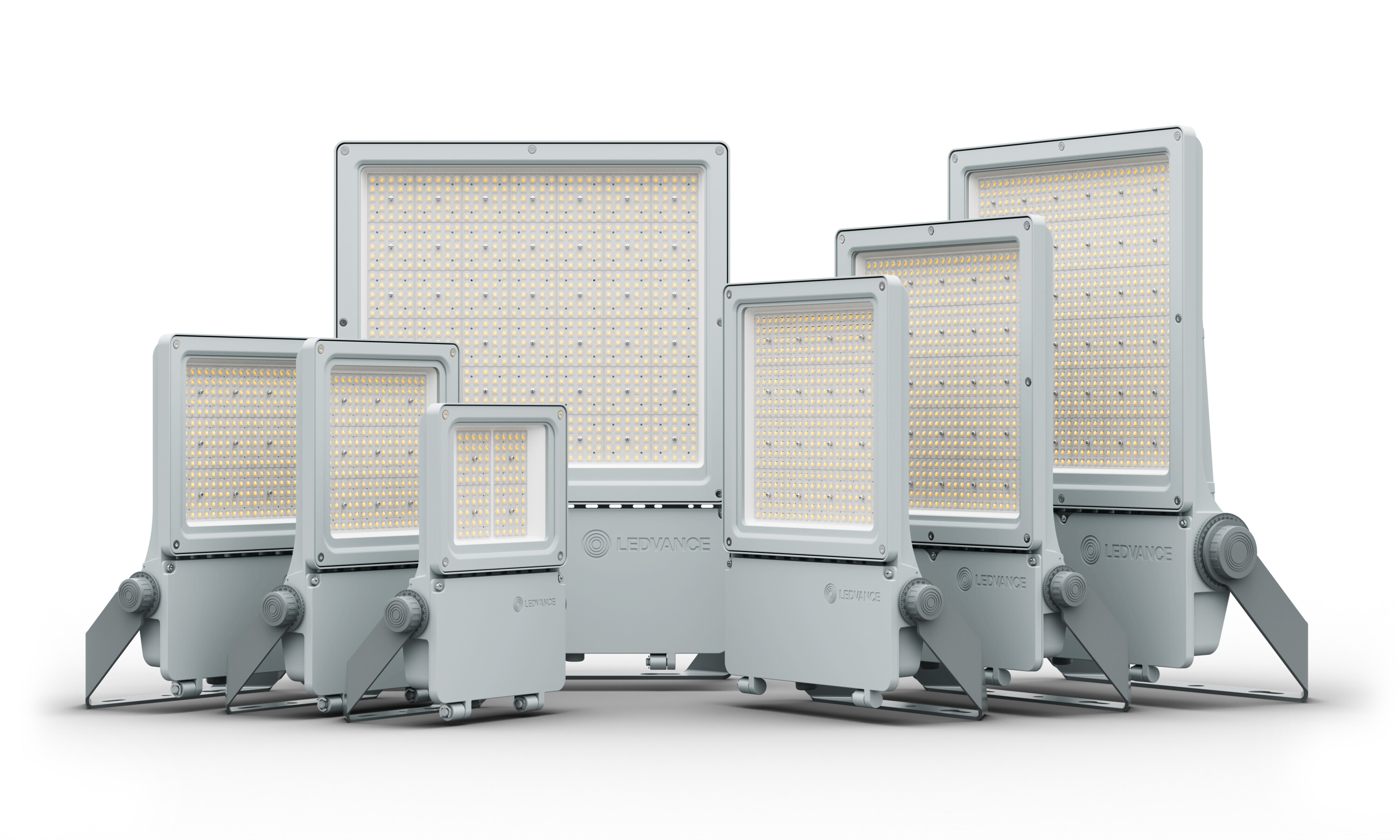

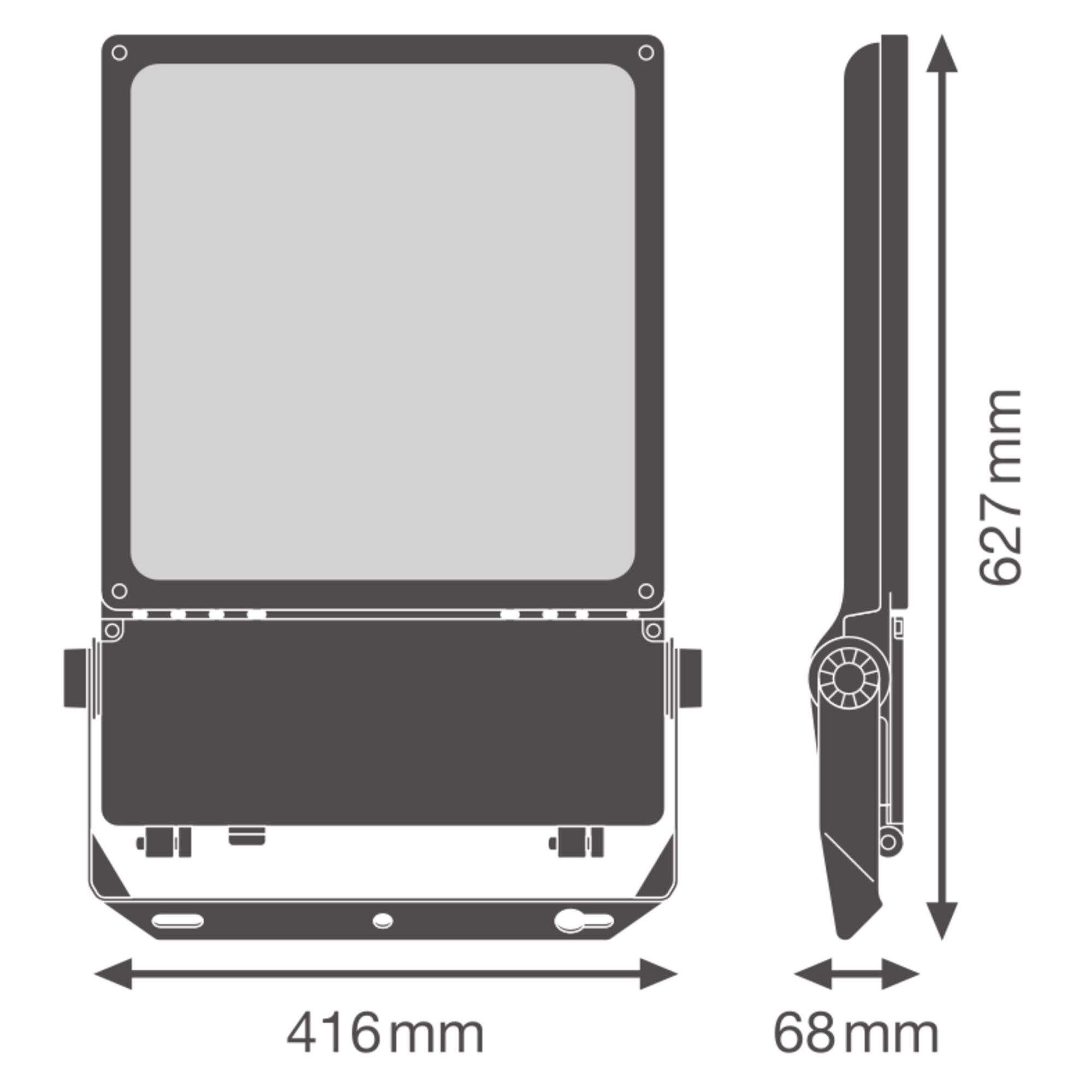

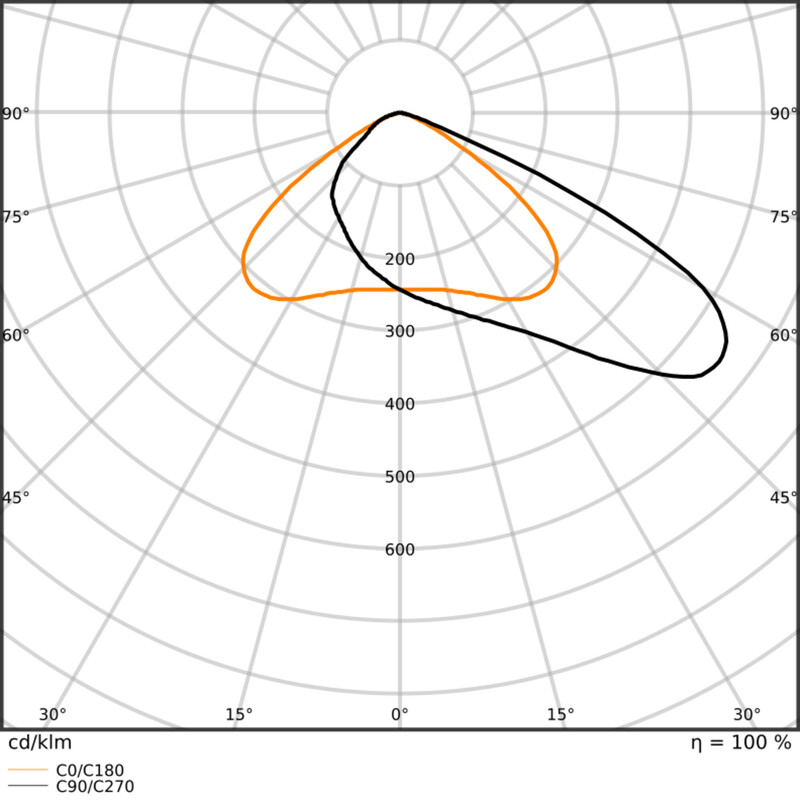

The FLOODLIGHT FLEX product family offers extremely long-lasting and high-quality LED floodlights. Thanks to the Multi Lumen feature, the ON/OFF floodlights provide four different luminous flux options, easily selectable from the accessible electrical enclosure. The power supply can be easily replaced by a qualified electrical professional. The floodlight comes with all necessary penetration fittings. Key technical specifications: Luminous flux: 22200 / 27700 / 33200 / 39000 lm Color temperature: 4000 K, CRI > 80 Power: 137.5 / 175 / 212.5 / 250 W Luminous efficacy: 156 - 161 lm/W Beam angle: wide asymmetric 55 x 120 D Dimmable: No Dimensions (Length/Width/Height): 627 x 416 x 68 mm Weight: 8 kg Protection rating: IP66 and IK08 Average service life: 120,000 hours (L70/B50 +25 C) Average service life: 100,000 hours (L80/B10 +25 C) Operating temperature: -30…+50 C Warranty: 5 years Corrosion class (EN 12944): C5, very severe Certifications: CE, ENEC, D-marking Common applications: Sports field lighting, area lighting along coastlines, architectural lighting, general lighting of large outdoor areas This product description is an automated translation of the original Finnish description.
Toote andmed
Tehnilised näitajad
Sobib pinnapealseks paigalduseksjah
Sobib sisseehitamiseksei
Seinale paigaldatavjah
Sobib rippuvalt paigaldamiseksei
Sobib lakke paigaldamiseksjah
Risti paigaldamiseksjah
Sobib postamendile/põrandale paigaldamiseksjah
Sobib valgustisiinile paigaldamiseksei
Sobib klambri külge kinnitamiseksei
Sobib madalpingekaabliga süsteemileei
ReguleeritavusPööratav
Liikumisandurigaei
Valgusandurigaei
Valgusallikagajah
Korpuse materjalAlumiinium
Tootekoodid
SAPDHY470
PLC4099854373664
EAN/GTIN4099854373664
Tootja tootekood4099854373664
Tarnija tootekood4099854373664
Põhinäitajad
Mõõdud707 x 457 x 119 mm
Maht38.449 l
Kaal9.722 kg
Ühiktk
Pakendi suurused1 / 39
Kogus pakendis–
UNSPSC39111611
KaubamärkLEDVANCE
Seotud dokumendid (8)
Sertifikaadid
