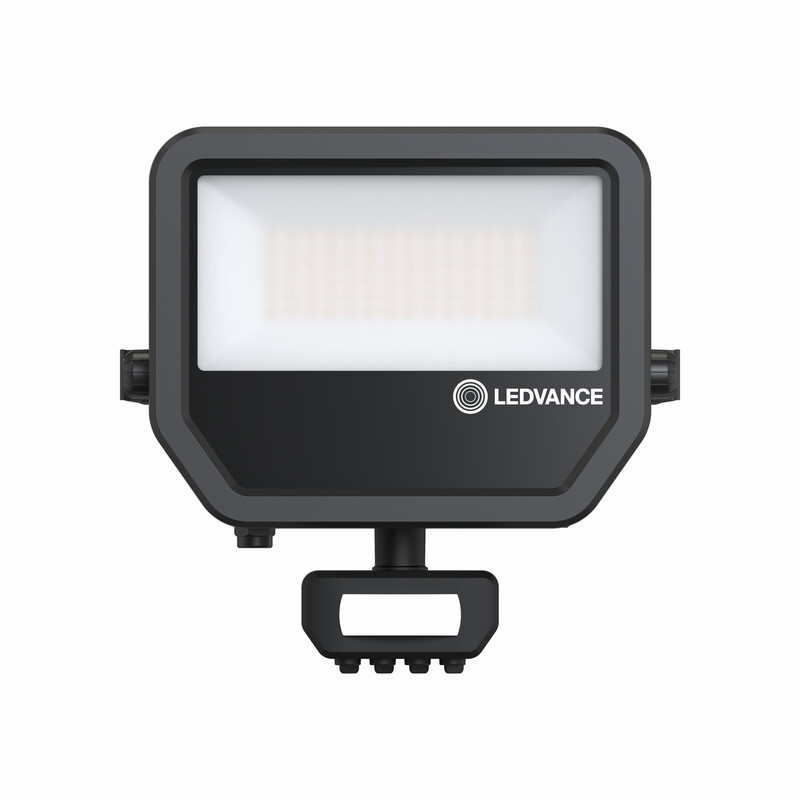

PROŽEKTOR SENSORIGA FL 41W 6KLM 840 PS SY100 MUST

Tootekood
DFL344
FLOODLIGHT SYM GEN4 - the lighting fixtures in this product family are equipped with the Multi Lumen feature, allowing the luminous flux to be easily selected from the fixture. The new generation floodlights are also equipped with a breath vent valve and a new tighter penetration grommet that prevent moisture from forming inside the fixture.

Key technical specifications:
  • Luminous flux: 4000 / 6000 lm
  • Color temperature: 4000 K, CRI80
  • Power: 27 / 41 W
  • Luminous efficacy: 145 lm/W

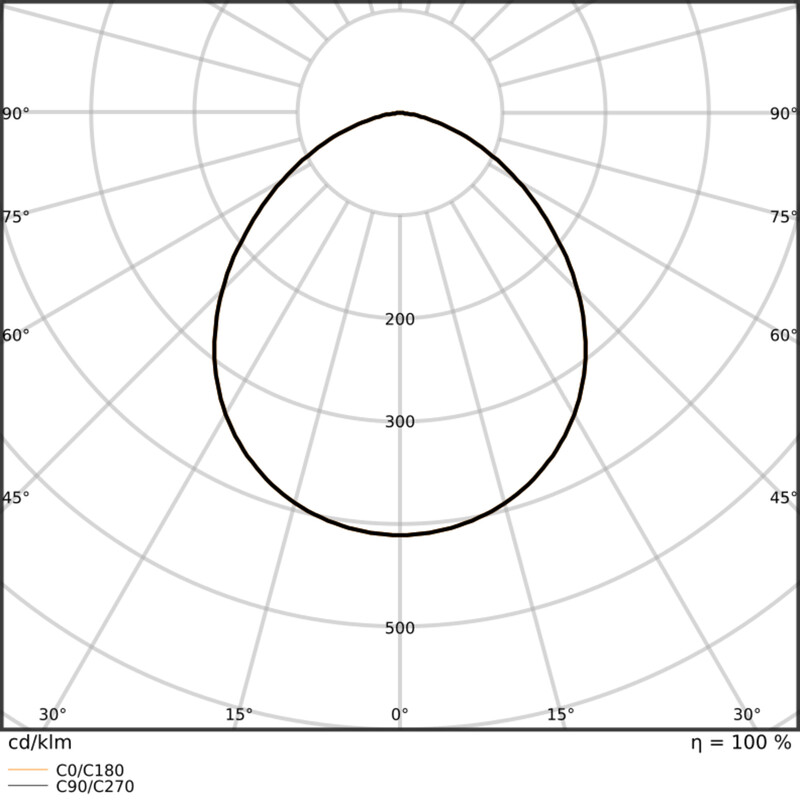

  • Beam angle: symmetrical 100 x 100 D
  • Dimmable: No
  • Dimensions (Length/Width/Height): 201 x 57 x 219 mm
  • Weight: 0.888 kg
  • Protection rating: IP65 and IK05
  • Average service life: 100,000 hours (L70/B50 +25 C)
  • Average service life: 70,000 hours (L80/B10 +25 C)
  • Operating temperature: -30…+50 C
  • Warranty: 5 years
  • Certifications: CE, ENEC, D-mark
  • On-time: 1 s ... 12 min
  • Dusk sensor threshold: 10 ... 2000 lx
  • Motion sensor sensitivity: Off, 2 ... 12 meters
  • Dimming level after motion: 0 ... 40 %
Fixed 1 meter long pre-stripped connection cable integrated into the floodlight. This product description is an automated translation of the original Finnish description.

Toote andmed

Tehnilised näitajad

Sobib pinnapealseks paigalduseksjah
Sobib sisseehitamiseksei
Seinale paigaldatavjah
Sobib rippuvalt paigaldamiseksei
Sobib lakke paigaldamiseksei
Risti paigaldamiseksei
Sobib postamendile/põrandale paigaldamiseksei
Sobib valgustisiinile paigaldamiseksei
Sobib klambri külge kinnitamiseksei
Sobib madalpingekaabliga süsteemileei
ReguleeritavusPööratav
Liikumisandurigajah
Valgusandurigajah
Lambi tüüpLED ei ole vahetatav
Valgusallikagajah

Tootekoodid

SAPDFL344
PLC4099854306921
EAN/GTIN4099854306921
Tootja tootekood4099854306921
Tarnija tootekood4099854306921

Põhinäitajad

Mõõdud69 x 206 x 229 mm
Maht3.255 l
Kaal0.92 kg
Ühiktk
Pakendi suurused1 / 8
Kogus pakendis
UNSPSC39111611
KaubamärkLEDVANCE

Seotud dokumendid (5)

Kataloogid ja tehniline dokumentatsioon
