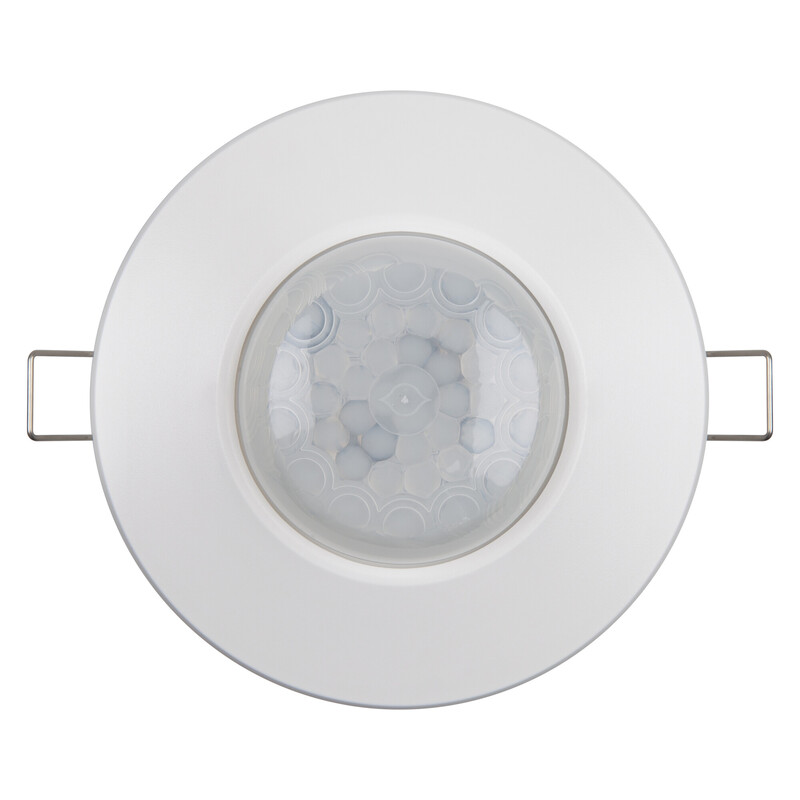

SENSOR DALI-2 LS-PD-40X5 IR CI

LEDVANCE DALI-2 COMPONENTS product family offers a comprehensive range of different presence and light sensors and push-button adapters for DALI-2 lighting control systems. The recessed-mounted sensor is equipped with both presence and light sensors. The sensor receives its operating voltage directly from the DALI bus. Key technical specifications: Rated power: 0.1 W Operating voltage and current: 10...22.5 V, 8 mA Protocol: DALI-2 Maximum mounting height: 4 m Motion detection area diameter: 40 x 5 m (2.5 m mounting height) Light sensor range: 5...2000 lx Protection class: IP20 Recessed hole diameter: 68 mm Dimensions (Diameter/Depth): 105 x 67 mm Operating temperature: -20...+45 °C Product warranty: 5 years This product description is an automated translation of the original Finnish description.
