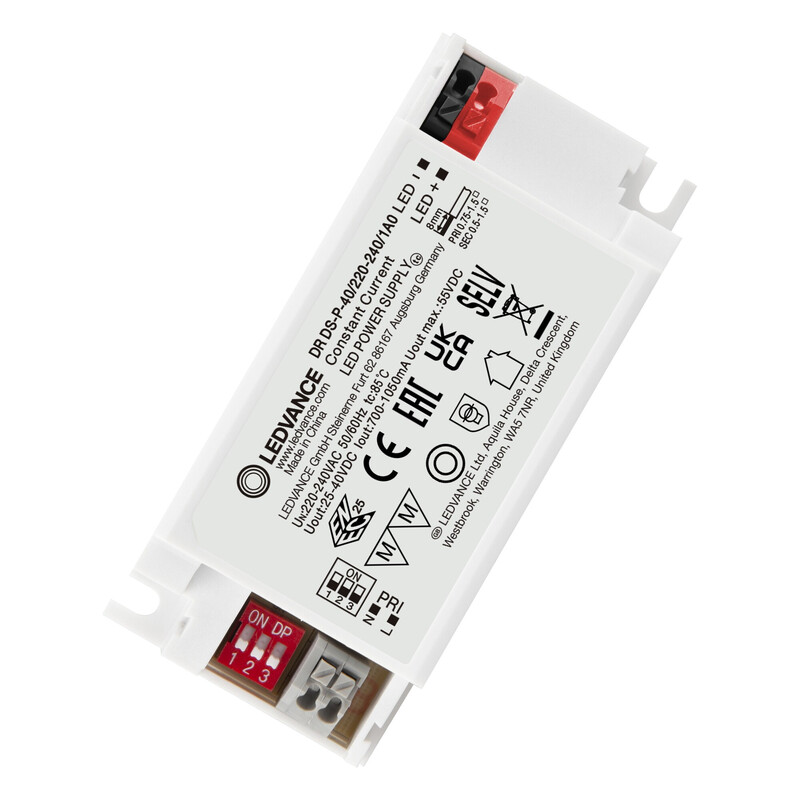

TOITESEADE DR DS-P-40/220-240/1A0

LED DRIVER DIP-SWITCH series offers a suitable constant current LED driver for LED modules, with the secondary current easily selectable via the DIP switch found on the driver. The selectable secondary current via the DIP switch makes these constant current LED drivers highly versatile and suitable for a wide range of lighting applications. Key technical specifications: Rated power: 42 W Operating voltage and current: 220 - 240 V, 280 mA Secondary voltage: 25 - 40 V, SELV Secondary current: 700 / 750 / 800 / 850 / 900 / 950 / 1000 / 1050 mA Efficiency at maximum load: 89 % Enclosure rating: IP20 Dimmable: No Dimensions (Length/Width/Height): 97.8 x 44 x 25.5 mm Operating temperature: -20 to +50 °C Max. Tc temperature: 85 °C Average service life: 50,000 hours (L70/B50 +25 °C) Product warranty: 5 years Certifications: CE and ENEC certificates Separately orderable heat sink cover: 4031469 This product description is an automated translation of the original Finnish description.
