MOODULKILP PLEXO³ 8MOD PIND IP65 PE/N

Tootekood
CGY607

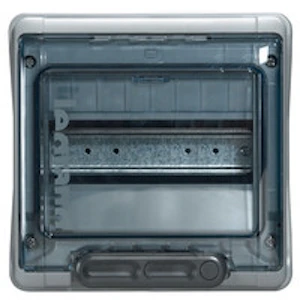

Weather-resistant surface-mounted Plexo3 enclosure for module panels. Plexoł module enclosures are suitable for use in outdoor and industrial applications, high-rise buildings, as well as agricultural and solar power installations. High IP65 rating, guaranteed for use in humid environments. Cable entries on the top, bottom, and sides of the enclosure. IK09 improves impact resistance and extends service life. Self-extinguishing: filament resistance up to 650°C. Lockable door handle, sealable cover, and front panel. Door and cabinet orientation fully interchangeable. Rail spacing of 150 mm This product description is an automated translation of the original Finnish description.

Toote andmed

Tehnilised näitajad

PaigaldusmeetodPinnapealne (kips)
Ridade arv1
Laius moodulivahede arvuna9
Kaane tüüpUks
Katte mudelSuletud
Ukse tüüpÜhekordne
Läbipaistev kaas/uksjah
Signaal mööduvast uksestjah
Lukugajah
Sulu tüüpMuu
Korpuse materjalPlast
Sisseehitussügavus111.6 mm
Sisseehituskõrgus196 mm
Sisseehituslaius196 mm
Sisemine sügavus49 mm

Tootekoodid

SAPCGY607
PLC601978
EAN/GTIN3245066019789
Tootja tootekoodLG-601978
Tarnija tootekoodLG-601978

Põhinäitajad

Mõõdud200 x 116 x 200 mm
Maht4.64 l
Kaal0.75 kg
Ühiktk
Pakendi suurused1 / 6 / 72
Kogus pakendis
UNSPSC39121304
KaubamärkLEGRAND

Seotud dokumendid (1)
