HARUKARP A8 75x75x36mm VALGE HF IP54

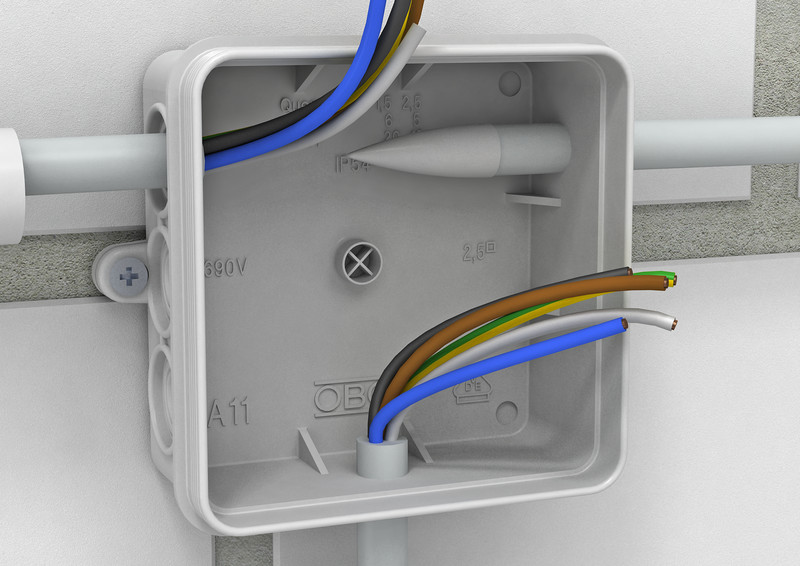

Protection class IP55, rated voltage 660 V, rated cross-section 2.5 mm², 7 terminals for cables, diameter 8-14 mm. Pressed cover. Dimensions: 75 x 75 x 36.2 mm. Internal free dimensions: 65 x 65 x 32 mm. 10 terminals per unit with 2 piercing pins. Cables can be installed directly through the base into the wall, or penetrations can be marked on the wall for drilling.

Internal distribution boxes are manufactured from halogen-free, self-extinguishing thermoplastic material. The maximum allowable number of conductors and terminals in the distribution boxes depends on the conductor cross-section used, preventing the development of excessively high temperatures. Plastic distribution boxes typically feature a printed table indicating the corresponding allowable values.

This product description is an automated translation of the original Finnish description.
