PÕRANDAKARP KOMPLEKTNE UDHOME9-2V-UT45

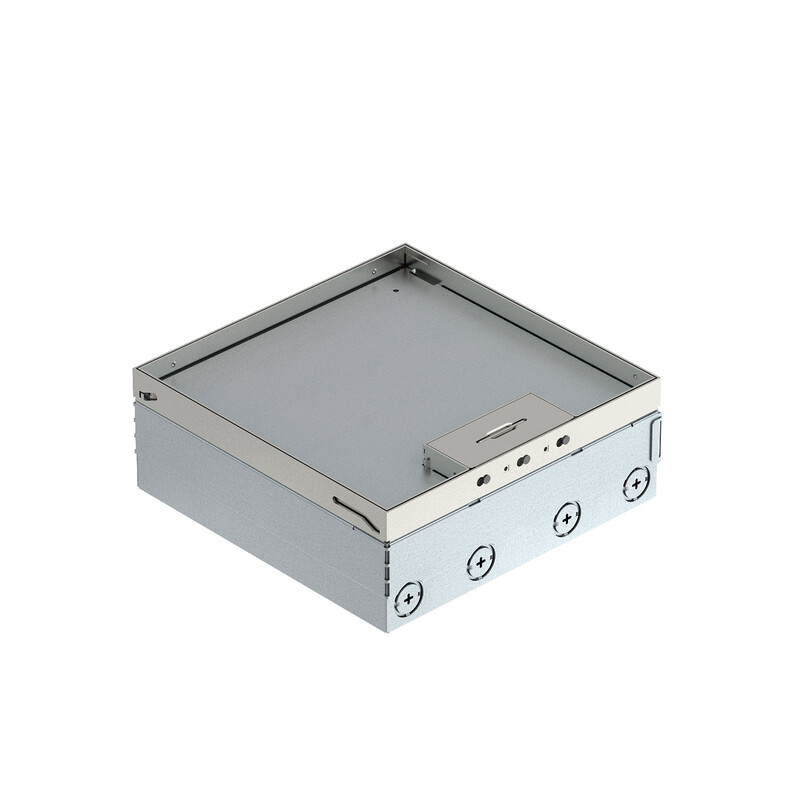

UDHOME floor boxes 2x MT x come in two different sizes: UDHOME4 with 2x3 modules and UDHOME9 with 3x4 modules (this product). The visible part of the lid is available in stainless steel or brass-colored finish depending on the floor covering. Features

• The lid has a lifting handle and a cable exit opening that can be locked in either open or closed position.
• The floor box has a cable guide that ensures cables exit safely through the cable opening.

Installation

The floor box is installed in a recess with a depth of 95-125 mm including the floor covering. When the box depth with the lid in the lowered position is 95 mm, the lid can be raised by 30 mm to match the finished floor level. The box has M25 thread inserts on two sides. For more information, see page 13 of the "Technical Data" PDF.

This product description is an automated translation of the original Finnish description.
