TÖÖMAAKESKUS VOIMA 1113 125A IP44

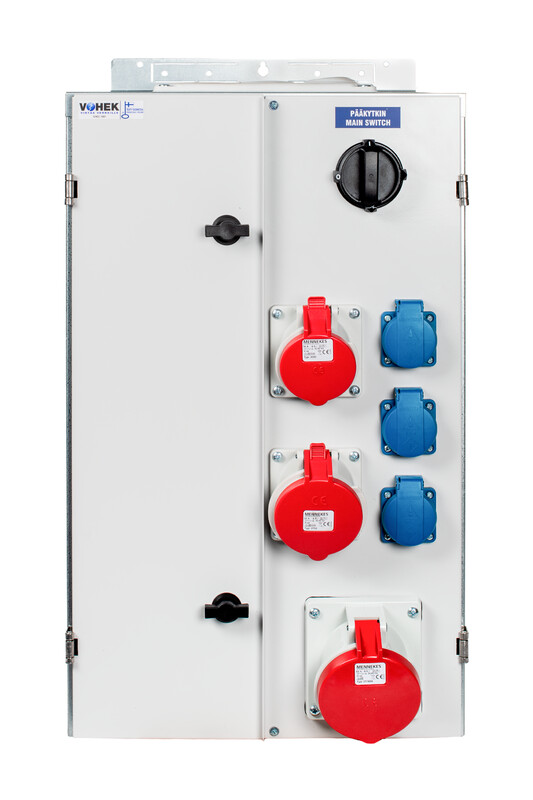

The VOIMA power outlet center is a central system designed for fixed installation in industrial workplaces and for distribution of maintenance electricity in factories. All Vohek centers are manufactured in Lieto, Finland. The center range has been updated and enhanced by improving, among other things, installability, tightness, strength, and expandability. Features

• enclosure made of hot-dip galvanized steel
• door and outlet panel painted light gray, color shade RAL 7047
• due to the layered structure, the entire base of the enclosure is available for wiring space
• standard equipment includes 2 x 95 mm² branch connectors
• standard MC3 multi-lamella for supply cables at the top and bottom of the enclosure
• optional additional accessory: separate protective roof (sstl 3434767)
• rated current InA 125 A
• rated voltage Un 400 V (50 Hz)
• rated insulation voltage Ui=Un
• short-time rated withstand current Icw 6 kA 1s
• derating factor 0.7
• enclosure protection class IP44
• impact resistance IK08
• protection class I (protective earthing)
• distribution system TN-S
• EMC operating environments A and B
• circuit breakers with C curve (standard)
• residual current device type A
• cover color RAL 7047
• corrosion resistance class C3
• weight approximately 15 kg

The centers are manufactured in accordance with European EN 61439-3 standards.

This product description is an automated translation of the original Finnish description.
